Jagenberg Simplex Universal 875-2 folder gluer, (1979) 2022-3 overhauled

Home/Folder gluers/Jagenberg Simplex Universal 875-2 folder gluer, (1979) 2022-3 overhauled

Jagenberg Simplex Universal 875-2 folder gluer, (1979) 2022-3 overhauled

Model:
Jagenberg Simplex Universal 875-2 folder gluer
Year:
(1979) 2021
Data:
Max 875 mm blanks.

Straight line+ Lock bottom.

Supplier:
Jagenberg
Reference:
9594

Description

 Jagenberg Simplex Universal 875-2  folder gluer

Max working width 875 mm

Feeder with vibrator

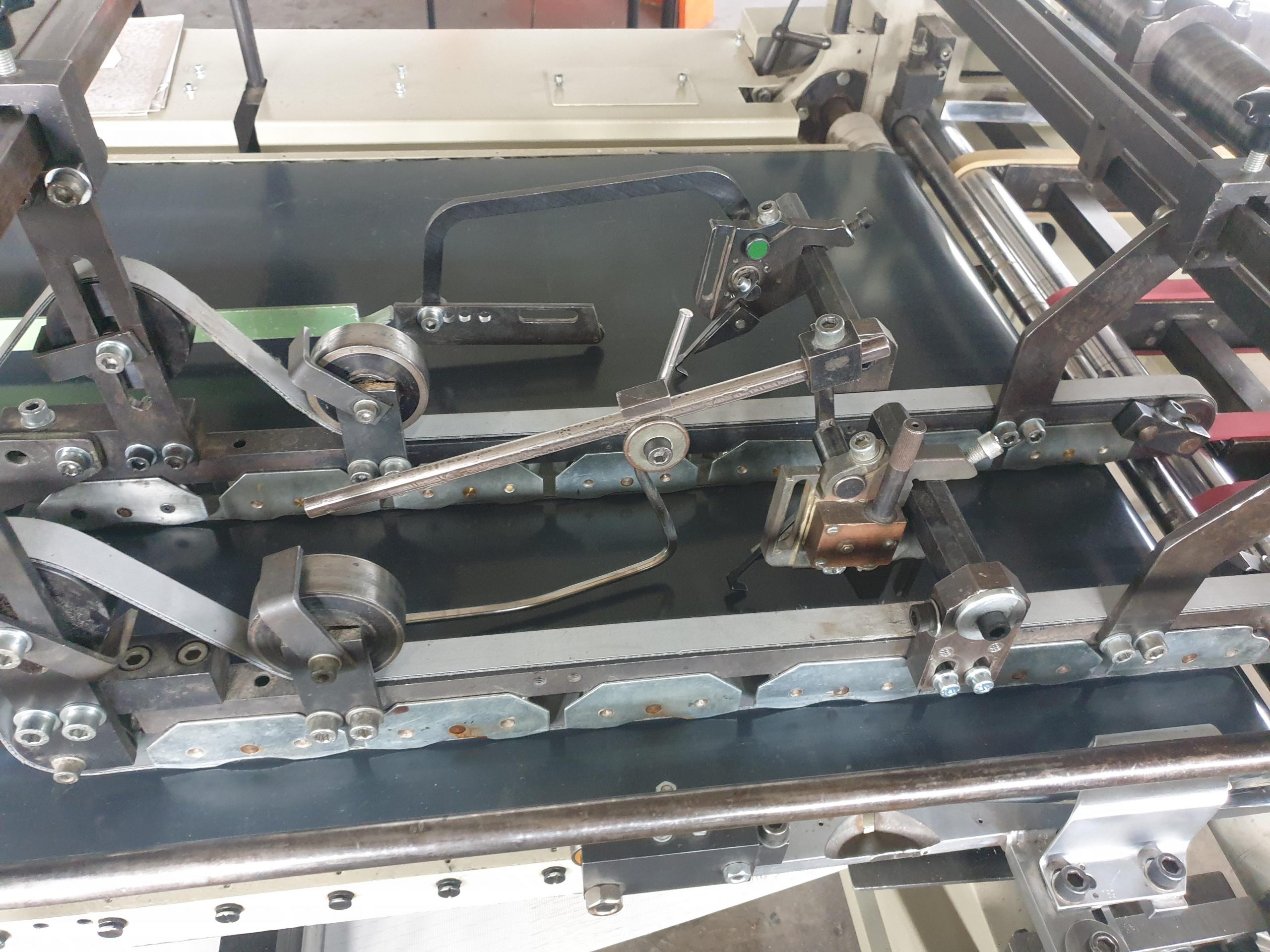

Equipped for straight line and lock bottom with Jagenberg Newer type of hook holders.

Press section with (new) Pedal for running the press section  empty whilst the main machine is stopped

Overhauled with New belts top and bottom.

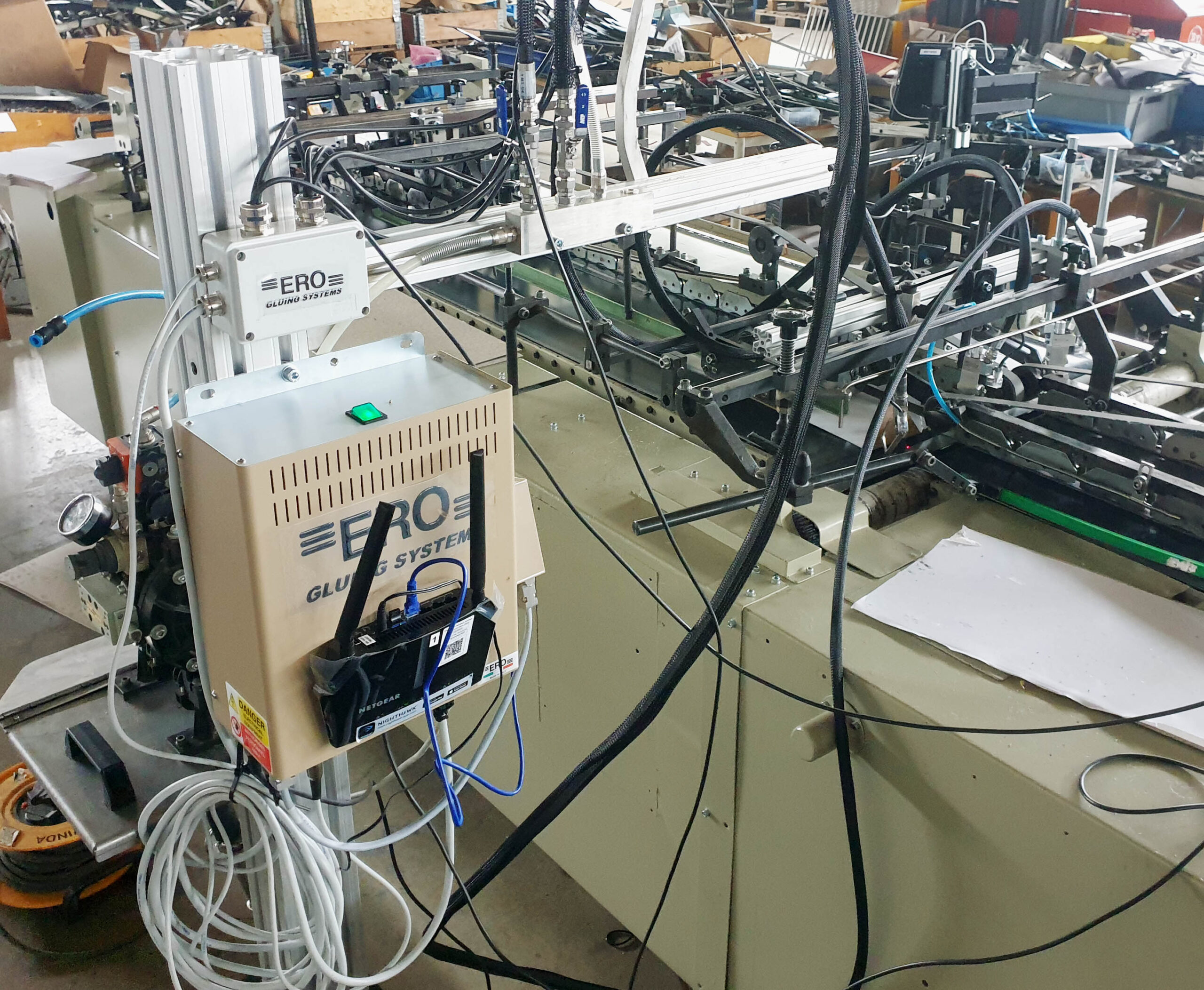

NEW  ERO  cold glue system with 3 guns (2 laser photocells) and kicker control from 2021.
The ERO System has the wireless IPAD control.8 channels with optional Arataper- tape applicator and/or hot melt system.

New glue pump 2022.

New frequency drive main machine and press section.

New timed feeder and programmable counter & kicker
Option: Timed Suction feeder- for warped sheets and catching blanks.

New Convenient storage shelfs for hand tools along the machine frame and over the press section.

New Remote control for jog start/stop and speed increase/decrease
Possibility to run French fries boxes.
Option: Hot melt system from HHS with one applicator gun. Watch a test.

Option: Front fold for pockets and envelopes with inside folded glue flaps. Max folded size 500 mm width.



Data as PDF :  Jagenberg Simplex Universal 875-2  folder gluer

 Lock bottom N-flute

Remote control- running E-flute lock bottom

Watch our own version of timed feeder.
Improves feeding of warped sheets and lock bottom with long lids.



Watch the kicker- programmable



Here, the machine is equipped with 3 automatic tape applicators (option).
